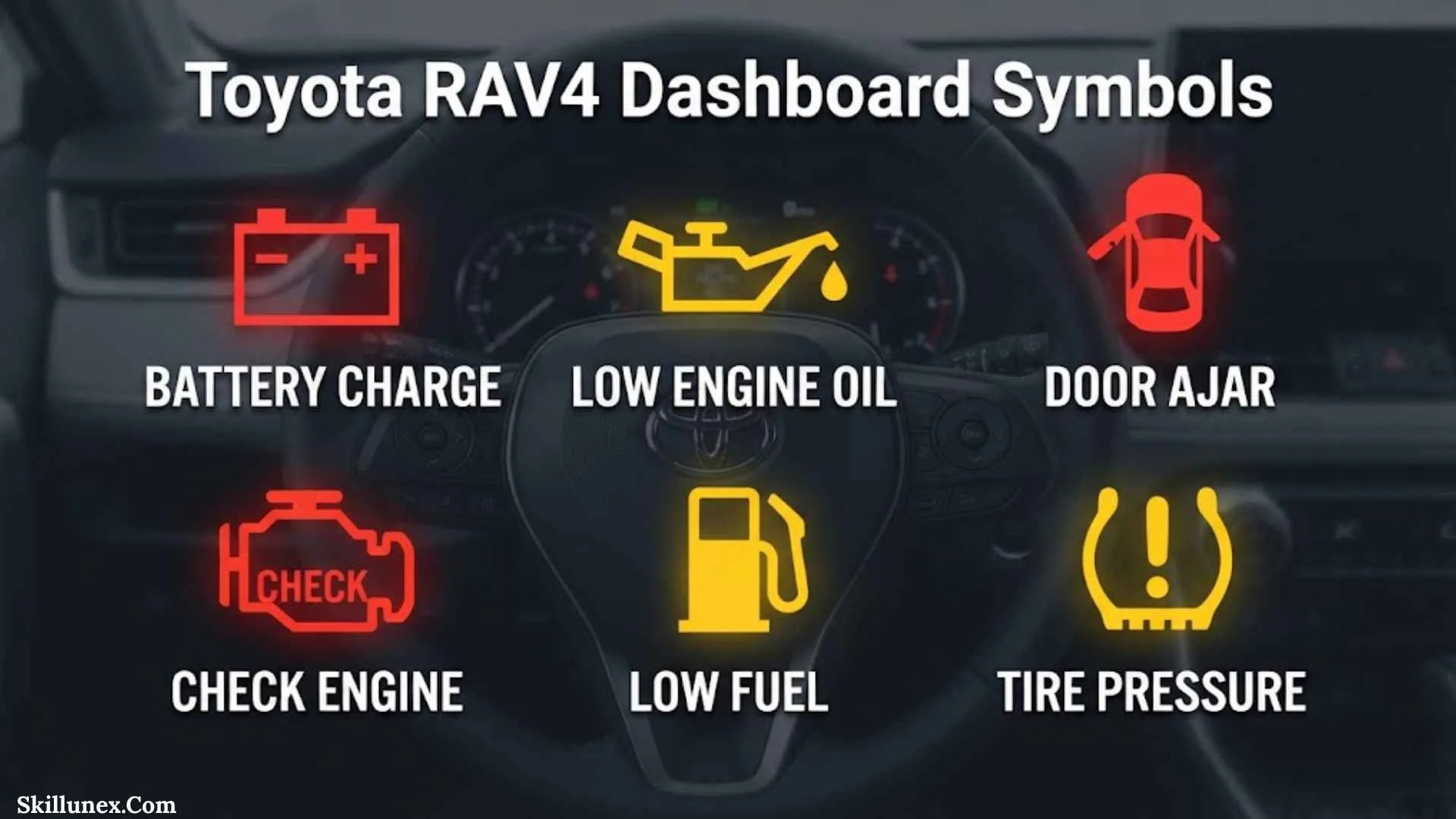

127+ Toyota RAV4 Dashboard Symbols: Complete Warning Light Guide

If you drive a Toyota RAV4, seeing a new symbol appear on your dashboard can make you wonder whether you should keep driving, stop immediately, or simply check a setting. I understand that confusion because not every dashboard light means there is a serious problem. Some symbols tell you that a feature is operating, while others warn you about a malfunction or condition that needs attention.

In this complete guide to Toyota RAV4 dashboard symbols, you will learn what the most common warning lights and indicators mean, what their colors tell you, and what you should do when they appear. Toyota explains that the exact symbols can vary by model year, trim, equipment, and powertrain, so you should always compare a warning with the owner’s manual for your specific RAV4.

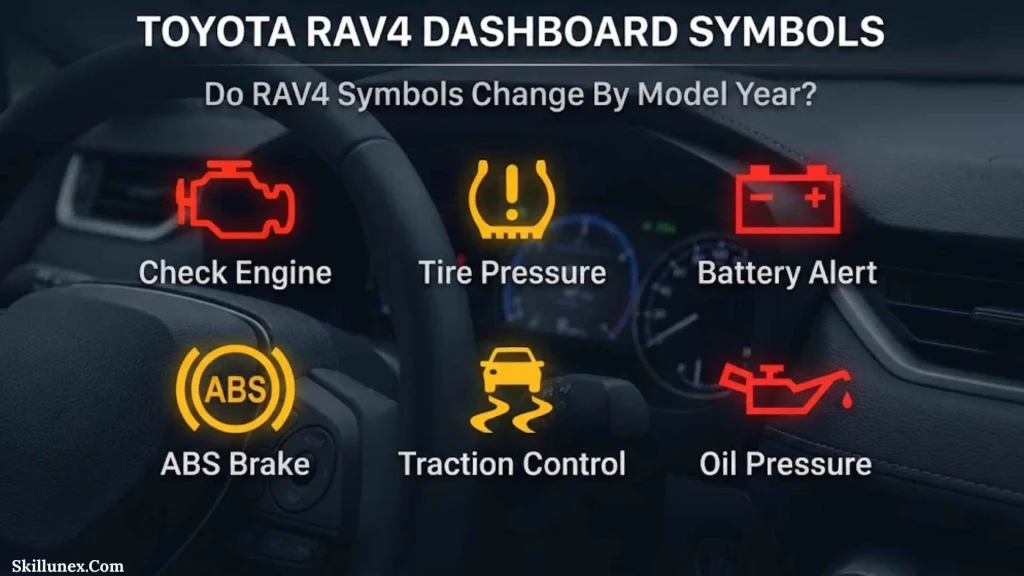

Toyota RAV4 Dashboard Symbols: (Quick Answer)

Toyota RAV4 dashboard symbols tell you about warning conditions, vehicle-system status, and active features. Red warning lights generally deserve immediate attention, while yellow or amber symbols commonly indicate a condition that needs checking. Green and blue symbols are often normal operating indicators.

The most important RAV4 symbols include the brake warning, ABS, check engine, tire pressure, low oil pressure, charging system, high coolant temperature, SRS airbag, electric power steering, master warning, seat belt, low fuel, slip indicator, TRAC OFF, VSC OFF, PCS, LTA, BSM, RCTA, parking brake, cruise control, high beam, AWD, and Hybrid READY indicators. The exact symbols available depend on your RAV4’s model year and equipment.

Toyota RAV4 Dashboard Light Colors And What They Mean

The first thing you should look at when a dashboard symbol appears is its color. Color gives you a quick idea of whether you are looking at an operating indicator or a warning.

Red Dashboard Symbols

Red warning lights generally indicate a condition that deserves immediate attention. Examples include certain brake-system warnings, low engine oil pressure, and high coolant temperature warnings.

If a serious red warning appears while you are driving, I recommend checking the message on the multi-information display and safely stopping when the owner’s manual instructs you to do so.

Yellow Or Amber Dashboard Symbols

Yellow or amber lights generally indicate a warning, malfunction, or condition that should be checked.

Examples can include the check-engine light, ABS warning, tire-pressure warning, or certain driver-assistance system warnings. Toyota identifies these systems among the RAV4’s warning lights.

Green Dashboard Symbols

Green symbols are generally indicators rather than emergency warnings. They commonly tell you that a vehicle feature is operating or has been selected.

For example, a turn signal or certain driving-assistance indicators may illuminate when their corresponding system is active.

Blue Dashboard Symbols

Blue symbols are commonly associated with lighting functions, especially the high-beam indicator.

If you see a blue high-beam symbol, it normally means your high beams are switched on.

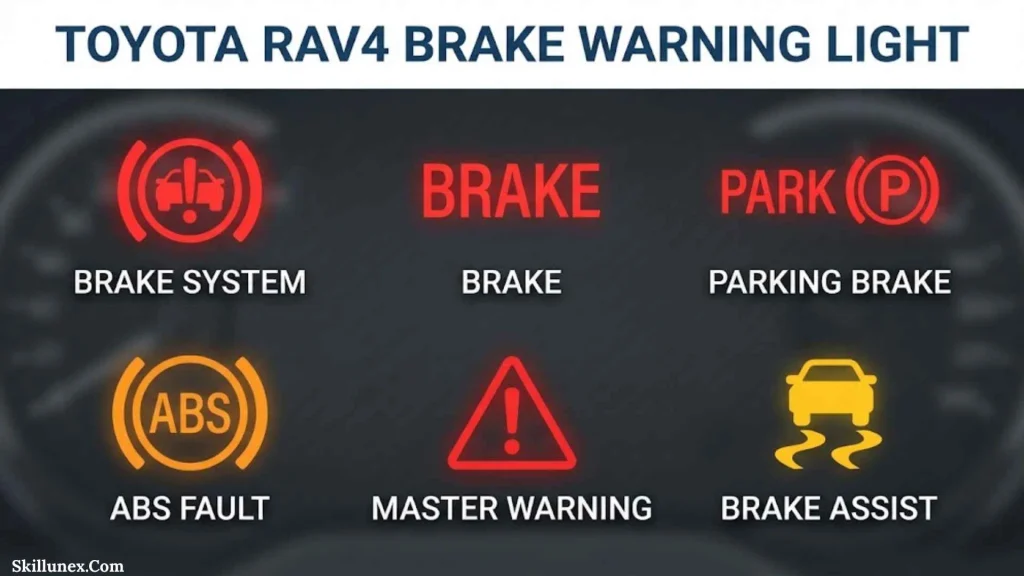

Toyota RAV4 Brake Warning Light

The brake warning symbol is one of the most important Toyota RAV4 dashboard symbols to understand.

A brake-system warning can indicate a problem with the brake system, although the exact meaning depends on the symbol, color, and vehicle configuration. Toyota lists brake-system warning lights among the RAV4’s primary warning lights.

What Should You Do If The Brake Light Appears?

First, make sure the parking brake has been completely released. If the warning remains illuminated, read the message on the multi-information display and follow your owner’s manual.

If you experience unusual braking, a soft brake pedal, reduced braking performance, or another serious brake-related symptom, stop safely and have the vehicle inspected.

Toyota RAV4 ABS Warning Light

The ABS warning symbol normally contains the letters ABS inside a circle.

ABS means Anti-lock Braking System. Toyota states that the ABS warning light indicates a malfunction in the ABS or Brake Assist system.

Is It Safe To Drive With The ABS Light On?

Do not ignore a persistent ABS warning. The conventional brakes may still function, but the anti-lock system may not operate as intended.

You should have the vehicle inspected, particularly if the ABS warning appears together with another brake warning.

Toyota RAV4 Check Engine Light

The check-engine light is also called the malfunction indicator lamp.

It indicates that the vehicle’s computer has detected a condition involving a monitored system. Toyota lists the malfunction indicator lamp among the RAV4’s warning lights.

What Does A Check Engine Light Mean?

The symbol itself does not identify the exact problem. Several different faults can trigger the same warning.

If the light stays on, arrange for the vehicle to be diagnosed. If it flashes or appears with serious drivability symptoms, treat it as more urgent and consult your owner’s manual.

Toyota RAV4 Tire Pressure Warning Light

The tire-pressure warning symbol usually looks like an exclamation mark inside a tire-shaped outline.

Toyota says this warning can indicate low tire inflation pressure or a malfunction in the tire-pressure warning system.

What Should You Do When The Tire Light Comes On?

Check the pressure of your tires and inflate them to the pressure specified for your RAV4.

Do not judge tire pressure simply by looking at the tire. A tire can be significantly underinflated without looking obviously flat.

If the warning returns after correcting the pressure, you may have a slow leak or a tire-pressure monitoring system issue that needs inspection.

Toyota RAV4 Low Engine Oil Pressure Warning

The low engine oil pressure warning is a serious dashboard symbol.

Toyota includes low engine oil pressure among the warning lights used on RAV4 Hybrid models.

What Should You Do About Low Oil Pressure?

If this warning appears while driving, safely stop as soon as the vehicle’s operating instructions require and consult the owner’s manual.

Do not treat a low oil-pressure warning as simply an ordinary oil-change reminder. Low oil pressure can potentially lead to severe engine damage if the vehicle continues operating under the wrong conditions.

Toyota RAV4 Charging System Warning Light

The charging-system warning symbol is commonly represented by a battery-shaped icon.

Toyota describes the charging-system warning as indicating a malfunction in the vehicle’s charging system.

What Does The Battery Warning Mean?

The warning does not necessarily mean that the battery itself needs replacing.

It can indicate a problem with the vehicle’s charging system, so you should have the cause diagnosed rather than simply installing a new battery.

Toyota RAV4 High Coolant Temperature Warning Light

A high coolant temperature warning means the vehicle’s cooling system has detected excessive temperature.

Toyota specifically instructs drivers to immediately stop the vehicle in a safe place when the high coolant temperature warning appears.

What Should You Do If Your RAV4 Overheats?

Stop safely and follow the overheating procedure in your owner’s manual.

Do not continue driving simply because the vehicle still appears to run normally. Also, never open a hot cooling-system component without following the manufacturer’s safety instructions because hot coolant and steam can cause serious burns.

Toyota RAV4 Hybrid System Overheat Warning

RAV4 Hybrid models can have additional warnings related to the hybrid system.

Toyota’s RAV4 Hybrid documentation specifically lists a hybrid system overheat warning light among the vehicle’s warning lights.

What Does The Hybrid Overheat Warning Mean?

It indicates that the hybrid system has detected an excessive-temperature condition.

If this warning appears, follow the message shown on the multi-information display and the instructions in your Hybrid RAV4 owner’s manual.

Because hybrid systems contain high-voltage components, you should not attempt to repair or dismantle the system yourself.

Toyota RAV4 SRS Airbag Warning Light

The SRS warning light is associated with the vehicle’s supplemental restraint system, including airbags.

Toyota lists the SRS warning light as one of the RAV4’s major safety-system warnings.

Why Is The SRS Light Important?

If the SRS warning remains illuminated when it should turn off, the system may require inspection.

Toyota also warns that if certain safety-system warning lights, including ABS and SRS lights, fail to illuminate during the initial system check, there could be a malfunction.

Because airbags and related safety systems are designed to protect occupants during a collision, you should not ignore a persistent SRS warning.

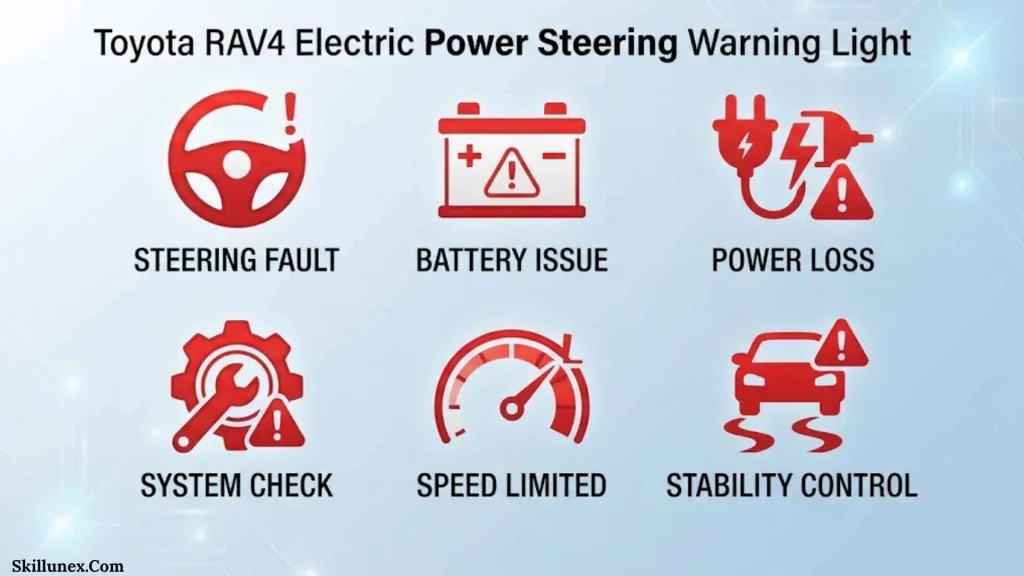

Toyota RAV4 Electric Power Steering Warning Light

The electric power steering warning symbol indicates a possible malfunction in the EPS system.

Toyota describes the EPS warning light as indicating a malfunction in the electric power steering system.

What Happens If The EPS Light Comes On?

You may notice that steering feels heavier than usual.

If steering suddenly becomes difficult, slow down safely and have the vehicle inspected. Do not assume that a temporary change in steering feel is harmless.

Toyota RAV4 Master Warning Light

The master warning light is a general warning indicator that works with the multi-information display.

Toyota explains that the RAV4’s display can provide warnings about system malfunctions, incorrectly performed operations, and maintenance-related messages.

How Do You Read A Master Warning?

When the master warning appears, look at the multi-information display for the accompanying message.

The message is often more useful than the symbol itself because it can tell you which system needs attention and what action Toyota recommends.

Toyota RAV4 Seat Belt Warning Light

The seat-belt reminder symbol indicates that a seat belt needs to be fastened.

RAV4 models can have driver, front-passenger, and rear-passenger seat-belt reminder functions depending on equipment and model year.

Why Is The Seat Belt Light On?

Check that everyone in the vehicle is properly buckled.

If the warning remains active unexpectedly, check the owner’s manual for your particular RAV4 because the reminder system can respond to passenger and seating conditions.

Toyota RAV4 Low Fuel Warning Light

The low-fuel warning light tells you that your fuel level is getting low.

Toyota lists the low-fuel level warning among RAV4 dashboard warnings.

Can You Keep Driving With The Low Fuel Light On?

You may still have fuel available, but you should refuel as soon as practical.

Your remaining range can vary considerably depending on traffic, driving style, weather, terrain, and fuel consumption, so I would not rely on a fixed number of miles or kilometers.

Toyota RAV4 Slip Indicator Light

The slip indicator is associated with traction and stability-control systems.

Toyota explains that warning and indicator lights can communicate the operating state of systems that help maintain vehicle stability and traction.

Why Does The Slip Light Flash?

A flashing slip indicator can mean that the traction or stability system is actively working.

For example, it may appear when the vehicle detects wheel slip on a slippery surface.

If the light remains on when you are not experiencing wheel slip, check the vehicle’s messages and have the system inspected if necessary.

Toyota RAV4 TRAC OFF Indicator

The TRAC OFF symbol indicates that traction control has been turned off.

Toyota’s official warning-light guide states that the TRAC OFF indicator means the vehicle’s traction control is turned off.

Should TRAC Usually Be Turned On?

For ordinary road driving, you will generally want the traction-control system available.

If you intentionally switched it off for a particular driving situation, the indicator is simply confirming that setting.

If it appears unexpectedly, check your RAV4’s controls and messages.

Toyota RAV4 VSC OFF Indicator

VSC means Vehicle Stability Control.

Toyota explains that the VSC OFF indicator is associated with disabling TRAC and VSC through the vehicle’s controls.

What Does VSC OFF Mean?

It means one or more stability-related functions have been switched off.

If you did not intentionally turn the system off, check your owner’s manual and vehicle display for additional information.

Toyota RAV4 PCS Warning Light

PCS stands for Pre-Collision System.

Toyota lists the PCS warning light among the RAV4’s warning systems.

What Does The PCS Light Mean?

The PCS warning can relate to the operating condition or availability of the pre-collision system.

If the warning appears, read the accompanying message because the reason can depend on driving conditions and vehicle specifications.

You should continue to drive attentively even when PCS and other driver-assistance features are available.

Toyota RAV4 LTA Indicator

LTA means Lane Tracing Assist.

Toyota lists LTA among the RAV4’s driving-support systems and indicators.

What Does The LTA Symbol Mean?

The LTA indicator communicates the status of Lane Tracing Assist.

Depending on the situation, the system can display different states or warnings. You should use the multi-information display to understand the specific message.

LTA is an assistance system, so you should continue monitoring the road and remain responsible for steering.

Toyota RAV4 BSM Indicator

BSM stands for Blind Spot Monitor.

On equipped RAV4 models, the system can provide information about vehicles detected in monitored areas around the vehicle.

What Does The BSM Light Mean?

A BSM indicator can communicate that the system is operating or provide a warning about a detected vehicle.

The exact behavior varies by vehicle configuration. If the system reports a malfunction, consult the owner’s manual and have it inspected when necessary.

You should always check your mirrors and surroundings rather than relying exclusively on BSM.

Toyota RAV4 RCTA Indicator

RCTA means Rear Cross Traffic Alert.

Toyota includes RCTA-related indicators among the available RAV4 driver-assistance indicators.

What Does RCTA OFF Mean?

An RCTA OFF indicator means the rear cross-traffic alert function is switched off or unavailable.

If you normally use RCTA while reversing, check its status before moving the vehicle.

Toyota RAV4 Parking Brake Indicator

The parking-brake indicator tells you whether the parking brake is engaged or provides information about its status.

Toyota’s RAV4 documentation includes a parking-brake indicator among its dashboard indicators.

Why Is The Parking Brake Light On?

The most straightforward reason is that the parking brake is engaged.

Release it according to the instructions for your RAV4. If the indicator remains on unexpectedly, check the multi-information display and owner’s manual.

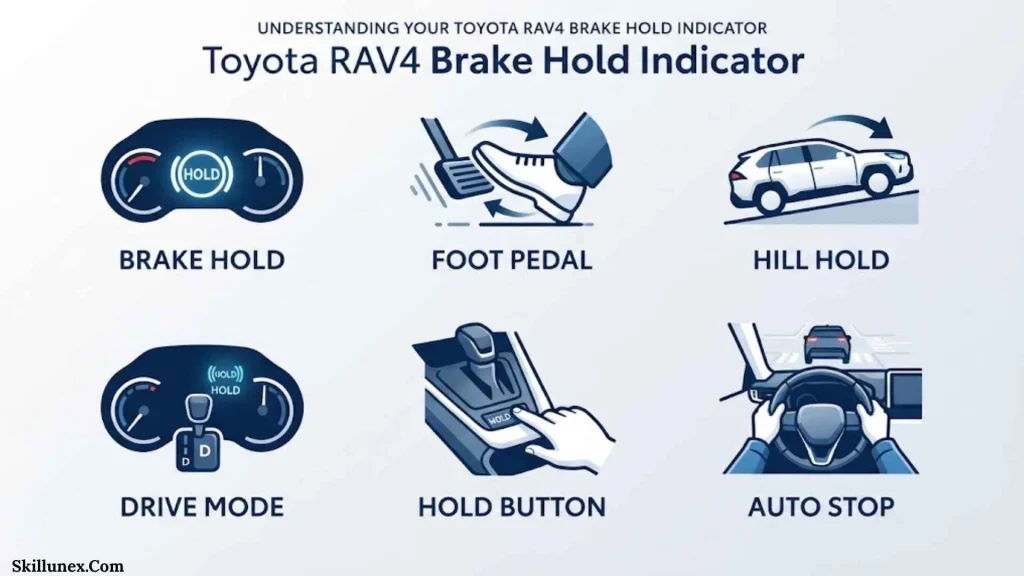

Toyota RAV4 Brake Hold Indicator

Some RAV4 models have Brake Hold, which can keep the vehicle stationary after you stop without requiring you to continuously hold the brake pedal.

Toyota’s RAV4 documentation distinguishes between Brake Hold standby and operated indicators.

Is The Brake Hold Light A Warning?

Not necessarily.

If you see a Brake Hold operating indicator, it can simply mean that the feature is active.

Always understand whether you are looking at an operating indicator or a warning before assuming something is wrong.

Toyota RAV4 Cruise Control Indicator

The cruise-control symbol indicates the status of the cruise-control system.

Toyota lists cruise control and Dynamic Radar Cruise Control among RAV4’s available indicators and driving-support functions.

What Does The Cruise Control Symbol Mean?

It generally tells you that cruise control has been activated, is ready, or has been set, depending on the symbol and display state.

A cruise-control indicator is normally not an engine or mechanical warning.

Toyota RAV4 Dynamic Radar Cruise Control Indicator

Some RAV4 models are equipped with Dynamic Radar Cruise Control.

Toyota’s current RAV4 documentation identifies Dynamic Radar Cruise Control as a driving-support system displayed through the vehicle’s information systems.

Is The Radar Cruise Symbol A Warning?

Usually, it is an operating-status indicator.

If the system displays a specific warning or becomes unavailable, read the message on the multi-information display and follow the instructions provided for your RAV4.

Toyota RAV4 High Beam Indicator

The high-beam indicator is normally blue and resembles a headlamp.

It tells you that the high-beam headlights are operating.

Why Is The Blue Headlight Symbol On?

If the blue symbol is illuminated, your high beams are generally switched on.

Remember to use low beams when appropriate around other road users.

Toyota RAV4 Automatic High Beam Indicator

RAV4 models equipped with Automatic High Beam can display an AHB-related indicator.

Toyota lists the Automatic High Beam indicator among the RAV4’s available dashboard indicators.

What Does AHB Mean On A RAV4?

AHB means Automatic High Beam.

The indicator relates to the operating status of the automatic high-beam feature rather than an engine fault.

Toyota RAV4 Turn Signal Indicators

The left and right arrows on the instrument cluster are turn-signal indicators.

Why Are The Turn Signal Arrows Flashing?

They flash when the corresponding turn signal is activated.

If the flashing behavior suddenly becomes unusual, inspect the exterior lighting and consult your owner’s manual because a lighting problem may be involved.

Toyota RAV4 AWD And Drive Mode Indicators

Depending on your RAV4’s configuration, the dashboard can display AWD, Trail Mode, Snow Mode, Eco, Sport, and other driving-mode information.

Toyota’s RAV4 documentation lists driving-mode functions such as Trail Mode and other selectable vehicle modes on appropriately equipped vehicles.

Does An AWD Indicator Mean There Is A Problem?

Not necessarily.

An AWD or drive-mode symbol can simply tell you that a particular drivetrain or driving mode is active.

A separate drivetrain warning accompanied by a message should be treated differently and checked according to the owner’s manual.

Toyota RAV4 Hybrid READY Indicator

RAV4 Hybrid owners may notice a READY indicator that does not appear on conventional gasoline models.

What Does READY Mean On A RAV4 Hybrid?

READY means the hybrid system is ready for the vehicle to be driven.

The gasoline engine may not always be running audibly when the READY indicator is displayed. That can be normal for a hybrid vehicle.

Toyota RAV4 Hybrid EV Indicator

The EV indicator relates to electric-drive operation in applicable RAV4 Hybrid models.

Toyota’s Hybrid RAV4 documentation includes EV-related operating indicators.

Does The EV Light Mean The Battery Is Full?

No.

An EV indicator does not simply mean that the battery is fully charged. It communicates that the vehicle is operating in an electric-drive state under the conditions recognized by the hybrid system.

Toyota RAV4 Eco And Sport Indicators

Some RAV4 models provide indicators for selected driving modes.

What Does ECO Mean?

An ECO indicator generally shows that an Eco-related driving mode or function has been selected.

What Does SPORT Mean?

A Sport indicator shows that the Sport driving mode has been selected on a vehicle equipped with that mode.

These are normally mode indicators rather than malfunction warnings.

Why Do All Toyota RAV4 Dashboard Lights Come On At Startup?

It can be completely normal for multiple dashboard lights to illuminate when you first turn the vehicle on.

Toyota explains that many warning lights illuminate during the initial system check and then turn off after the hybrid system starts or after several seconds.

When Should You Be Concerned?

Pay attention if a warning light that should disappear remains illuminated.

Toyota also warns that if certain safety-system warning lights do not illuminate during the startup check, this can indicate that the system may not be available and the vehicle should be inspected.

What To Do When A Toyota RAV4 Warning Light Appears

When you see an unfamiliar dashboard symbol, do not panic. Instead, work through these steps.

Check The Symbol And Color

First identify whether the symbol is red, yellow, green, blue, or another color.

Then compare its shape with the symbols in your owner’s manual.

Read The Multi-Information Display

The dashboard symbol may be accompanied by a message explaining the issue.

Toyota says the multi-information display can show system-malfunction warnings, operation-related messages, and maintenance information.

Follow The Recommended Correction

If Toyota provides a specific correction procedure, follow it.

If the warning message appears again after you have completed the recommended action, Toyota advises contacting a Toyota dealer.

Stop Immediately When The Manual Requires It

Some warnings require you to stop in a safe place rather than continue driving.

For example, Toyota specifically instructs drivers to immediately stop safely when the high coolant temperature warning appears.

Do Toyota RAV4 Dashboard Symbols Change By Model Year?

Yes. This is one of the most important things to remember when searching for Toyota RAV4 dashboard symbols online.

Toyota’s manuals explain that equipment, displays, symbols, and available systems can differ depending on the vehicle and equipment. The current Toyota manual also notes that illustrations may differ from the vehicle and that equipment can vary.

Why Does My RAV4 Have A Symbol I Cannot Find Online?

Your RAV4 may have a different trim, model year, market specification, Hybrid powertrain, or optional safety technology.

For that reason, the safest approach is to use the owner’s manual for your exact year and configuration.

Toyota provides model-specific manuals through its official Owners website.

Frequently Asked Questions About Toyota RAV4 Dashboard Symbols

What Is The Most Serious Toyota RAV4 Dashboard Light?

There is not one single “most serious” light because the meaning depends on the specific warning and vehicle condition. Brake-system, low-oil-pressure, and high-coolant-temperature warnings can require urgent attention. Toyota specifically says to immediately stop safely for a high coolant temperature warning.

What Does The Yellow Triangle Mean On A Toyota RAV4?

A yellow or amber warning can indicate that the vehicle has detected a condition that requires attention. If the symbol is the master warning indicator, check the accompanying message on the multi-information display to find out what triggered it.

Why Are All The Warning Lights On When I Start My RAV4?

Many RAV4 warning lights illuminate briefly during the startup system check. They should normally turn off after the vehicle starts or after the specified check period. If a warning remains illuminated, consult the owner’s manual and have the vehicle inspected when required.

What Does The Car With Squiggly Lines Mean On A RAV4?

The car-with-squiggly-lines symbol is associated with traction and stability-control functions. A flashing indicator can show that the system is actively responding to wheel slip or changing road conditions.

What Does The RAV4 READY Light Mean?

On a RAV4 Hybrid, READY means the hybrid system is ready for driving. The gasoline engine does not necessarily need to be audibly running when READY is displayed.

Can I Drive My RAV4 With A Warning Light On?

It depends on the warning. Some dashboard symbols simply show that a feature is operating, while others indicate a condition requiring immediate attention. If you are unsure, identify the symbol, read the dashboard message, and check your vehicle-specific owner’s manual before continuing.

Why Did My RAV4 Tire Pressure Light Come On?

The tire-pressure warning can indicate low tire inflation pressure or a malfunction in the tire-pressure warning system. Check the tire pressures against the recommended specification for your vehicle.

Why Is My RAV4 Check Engine Light On?

The check-engine light means the vehicle has detected a condition that has triggered the malfunction indicator system. The symbol alone does not identify the exact fault, so the vehicle may need diagnostic testing.

What Does The RAV4 ABS Light Mean?

The ABS warning light indicates a malfunction in the Anti-lock Braking System or Brake Assist system. Toyota recommends having the vehicle inspected rather than ignoring a persistent ABS warning.

Conclusion

Understanding Toyota RAV4 dashboard symbols helps you know the difference between a normal indicator and a warning that needs your attention. I recommend becoming familiar with the brake, ABS, check engine, tire pressure, oil pressure, charging, temperature, SRS, and traction control symbols because these can be especially important while you are driving.

You should also remember that your RAV4’s dashboard may not look exactly like another RAV4’s dashboard. Model year, trim, Hybrid equipment, optional safety systems, and regional specifications can change the available symbols. When a warning appears, you should use the message on your multi information display and the owner’s manual for your exact vehicle rather than relying only on a generic dashboard symbol chart.
