Whirlpool Washer Symbols: Meanings, Icons, Settings & Complete Guide

If you are looking at the control panel of a Whirlpool washer and wondering what a symbol means, you are not alone. Whirlpool washing machines use icons to identify wash cycles, temperature settings, spin speeds, options, status indicators, and warnings. Some symbols are easy to recognize, while others can be surprisingly difficult to understand.

This guide explains the most common Whirlpool washer symbols, their names, meanings, and typical uses. It also covers detergent drawer symbols, display indicators, warning icons, common troubleshooting steps, and how to identify the exact meaning of a symbol on your particular Whirlpool model.

Because Whirlpool has produced many different washers, symbols and functions can vary by model, series, country, and control panel. The explanations below are therefore intended as a practical reference rather than a replacement for the manual for your specific appliance.

Whirlpool Washer Symbols at a Glance

If you only need to identify a symbol quickly, start with this table.

Symbol or Icon	Common Name	General Meaning	What You May Need to Do
🌀	Spin	Spin cycle or spin speed	Select or adjust spin speed
💧	Water / Rinse	Water or rinsing function	Select a rinse-related option
🚿	Rinse	Rinse stage	Use for additional rinsing
🔒	Lock	Door or control lock	Wait for door to unlock or check control lock
🔑	Key / Control Lock	Controls are locked	Disable the lock if needed
⏱	Clock / Delay	Delay or timing function	Set or adjust the delay
🌡	Temperature	Wash temperature	Select a suitable temperature
▶	Start	Starts the cycle	Press to begin washing
⏸	Pause	Pauses the cycle	Press to temporarily stop
🌿	Eco	Energy or resource-saving option	Use when suitable for the load
🧴	Detergent	Detergent-related indication	Use the correct dispenser compartment
👶	Child Lock	Control lock	Disable according to the manual
⚖	Load Sensing	Detects or estimates load	Usually automatic
🌀+	Extra Spin	Additional spinning	Use when more water extraction is appropriate
🚰	Water Tap	Water supply warning	Check the water supply
🛁	Drain	Drainage-related warning	Check drainage if the washer cannot empty
🔧	Service / Fault	Possible appliance fault	Check the manual or troubleshooting instructions

The emoji illustrations above are only approximate. The actual Whirlpool icons on your machine may look different.

Whirlpool Washer Symbols and Meanings

Whirlpool symbols can generally be divided into four groups: wash-cycle symbols, option symbols, status indicators, and warning symbols.

Wash Cycle Symbols

Wash-cycle symbols tell you what type of washing program the machine will run.

Common Symbol Type	Cycle	Typical Laundry
Cotton icon	Cotton	Cotton clothing, towels, sheets
Synthetic icon	Synthetics	Polyester and synthetic fabrics
Wool icon	Wool	Machine-washable wool
Delicate icon	Delicates	Delicate garments
Quick/clock icon	Quick Wash	Lightly soiled or smaller loads
Mixed-fabric icon	Mixed	Compatible mixed fabrics
Bedding icon	Bedding	Sheets and other suitable bulky items
Drum/cleaning icon	Cleaning	Washer or drum cleaning

Not every Whirlpool washer includes all of these programs.

Cotton Symbol

A cotton-related symbol generally identifies the Cotton program.

It is commonly intended for durable cotton laundry such as:

• T-shirts
• Towels
• Sheets
• Cotton underwear
• Everyday cotton clothing

Always follow the garment’s care label and avoid selecting a temperature or spin speed that is unsuitable for the fabric.

Synthetic Symbol

A synthetic-fabric symbol generally identifies a program designed for synthetic or mixed synthetic garments.

Common examples include polyester and other manufactured fibers.

The program may use different movement, temperature, and spin settings from a cotton cycle.

Wool Symbol

A wool symbol generally identifies a dedicated Wool program.

Use it only for garments whose care labels permit machine washing.

Wool can be sensitive to:

• Temperature
• Agitation
• Spinning
• Detergent choice

When in doubt, follow the garment manufacturer’s instructions.

Delicate Symbol

A delicate-related icon identifies a gentler program.

It may be suitable for certain lightweight or delicate garments when the care label permits machine washing.

Avoid assuming that every item labeled “delicate” can automatically be washed together.

Quick Wash Symbol

A clock or short-cycle symbol may represent a Quick Wash or rapid program.

Quick cycles are generally intended for:

• Lightly soiled clothes
• Smaller loads
• Laundry that needs a shorter wash

A quick cycle may not provide the same cleaning performance as a longer program for heavily soiled laundry.

Mixed Load Symbol

A mixed-load program is designed for compatible garments made from different fabrics.

It can be useful for everyday laundry when separating every fabric type is unnecessary.

Always check the care labels before combining different materials.

Bedding Symbol

Some Whirlpool washers provide a bedding or large-item cycle.

It may be designed for items such as:

• Sheets
• Blankets
• Duvets
• Other large washable textiles

Check the washer’s capacity before loading bulky items.

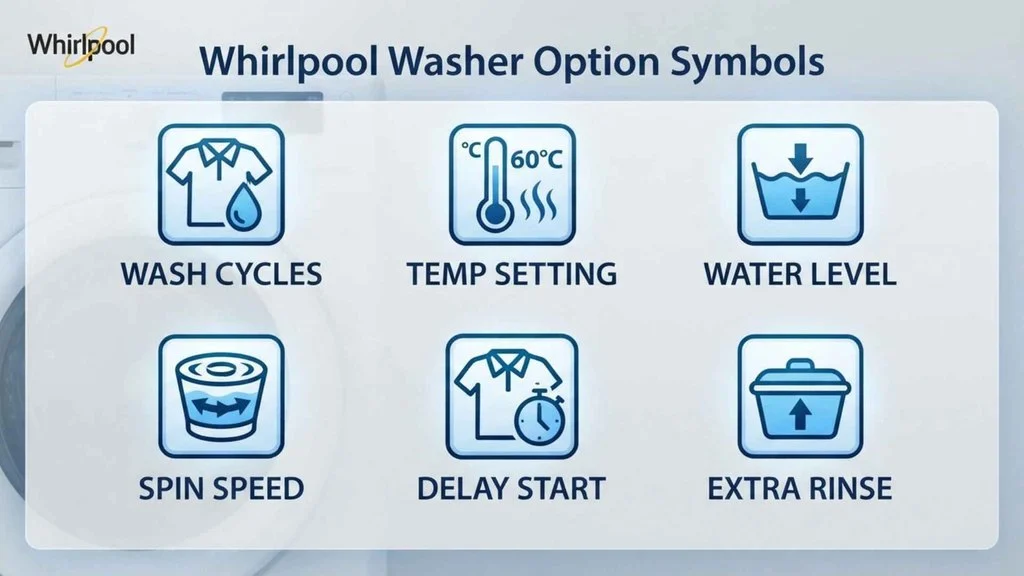

Whirlpool Washer Option Symbols

Option symbols modify the selected washing program instead of necessarily representing a complete cycle.

Extra Rinse Symbol

An extra-rinse option adds another rinse stage.

It may be useful when you want additional removal of detergent residue or when the selected load requires more rinsing.

Remember that an additional rinse can increase water consumption and cycle duration.

Prewash Symbol

A prewash option adds a preliminary washing stage before the main wash.

It can be useful for heavily soiled laundry.

A prewash is usually unnecessary for lightly soiled everyday clothing.

Extra Spin Symbol

An extra-spin option adds or increases spinning to remove more water from suitable laundry.

This can be useful when clothes come out wetter than desired.

However, delicate garments may require lower spin speeds.

Steam Symbol

Some Whirlpool washers have steam-related features.

A steam icon can indicate a steam treatment designed for a particular washing or refreshing function.

The exact purpose depends on the washer model, so do not assume that every Whirlpool steam symbol performs the same function.

Eco Symbol

An eco symbol generally identifies an energy- or resource-saving cycle or option.

Eco programs may use different combinations of:

• Water consumption
• Temperature
• Cycle duration
• Drum movement

An eco cycle can sometimes take longer than a conventional short cycle while using resources more efficiently.

Delay Start Symbol

A clock or timer icon can represent Delay Start.

This lets you schedule the washer to begin later.

For example, a user may load the washer and choose a delayed start so the cycle begins at a preferred time.

The available delay period varies by model.

Whirlpool Detergent Drawer Symbols

Detergent drawer markings are among the most useful Whirlpool washer symbols to understand.

A typical drawer may contain separate compartments for prewash detergent, main-wash detergent, and fabric softener.

Marking	Common Meaning	What Usually Goes There
I or 1	Prewash	Prewash detergent
II or 2	Main wash	Main detergent
Flower symbol	Fabric softener	Fabric softener
MAX line	Maximum level	Do not exceed the indicated level

I or 1 — Prewash Compartment

The compartment marked I or 1 is generally intended for detergent used during a prewash.

If your selected cycle does not use a prewash, this compartment may remain unused.

II or 2 — Main Wash Compartment

The II or 2 compartment generally holds the detergent for the main wash.

This is normally the primary detergent compartment for standard washing programs.

Flower Symbol — Fabric Softener

A small flower-shaped symbol commonly identifies the fabric-softener compartment.

Do not fill beyond the indicated maximum level.

Using too much softener can create residue and may interfere with proper dispensing.

Why Detergent Drawers Differ

Whirlpool has produced many washer models with different detergent drawer designs.

Some machines may have:

• Different compartment arrangements
• Automatic detergent dispensing
• Special detergent systems
• Fewer compartments
• Model-specific markings

If your drawer does not match this layout, check the instructions for your model instead of guessing.

Whirlpool Washer Display Symbols

Not every icon on a Whirlpool washer means that you have selected a cycle. Some symbols communicate the machine’s current status.

Door Lock Symbol

A lock icon commonly means that the washer door is locked.

This can happen during parts of the wash cycle when opening the door would be unsafe or could cause water to escape.

If the lock symbol is illuminated:

1. Do not force the door.
2. Wait for the washer to release the lock.
3. If the lock remains unexpectedly, consult the model’s instructions.

Key Symbol

A key symbol may indicate that the washer’s controls are locked.

This can be associated with a child-lock or control-lock function.

The exact button combination used to activate or deactivate the lock differs between Whirlpool models.

Child Lock Symbol

A child-lock indicator is designed to help prevent accidental changes to the controls.

It is particularly useful when children may reach the control panel.

If the controls do not respond normally, check whether the child-lock feature has been activated.

Time Symbol

A clock or time indicator can represent:

• Remaining cycle time
• Delay start
• A selected time setting

The meaning depends on where the symbol appears and what the display is showing.

Temperature Symbol

A thermometer or temperature-related icon indicates the wash temperature setting.

Depending on the model, you may be able to select temperatures such as:

• Cold
• Cool
• 30°C
• 40°C
• 60°C
• 90°C

Not every washer offers all temperatures.

Spin Symbol

A spiral or swirl is commonly associated with the spin function.

It may indicate:

• Spin cycle
• Spin speed
• Additional spin
• Reduced or canceled spin

The available spin speeds depend on the washer.

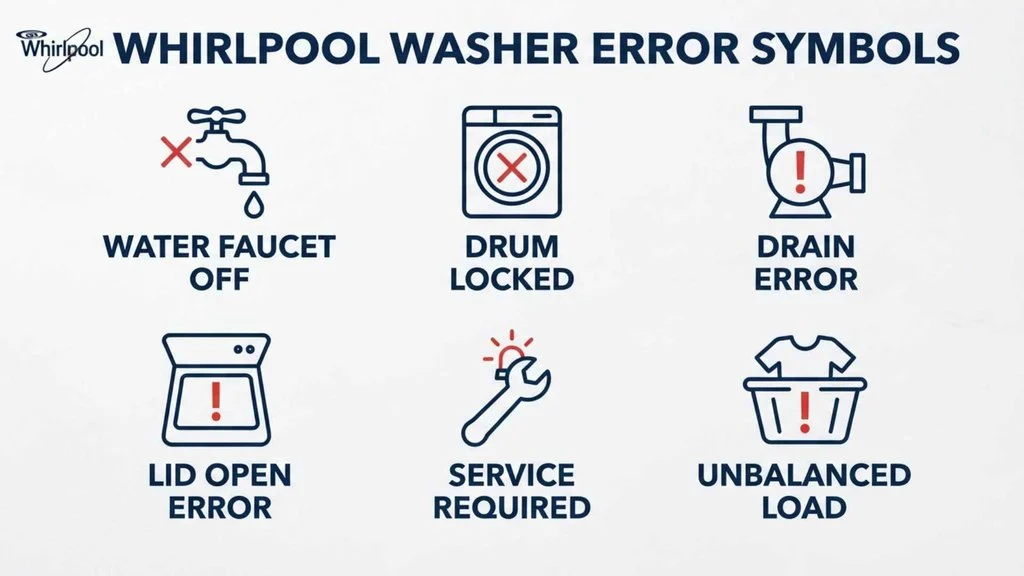

Whirlpool Washer Warning and Error Symbols

Some symbols are not settings at all. They indicate that the washer needs attention.

Water Tap Symbol

A water-tap icon may indicate a problem with the water supply.

If this symbol appears, check:

1. Whether the water supply is turned on.
2. Whether the inlet hose is kinked.
3. Whether there is an obvious restriction in the water supply.
4. Whether the washer is receiving water normally.
5. Whether the model manual provides additional checks.

If the warning remains, consult the instructions for your exact Whirlpool model.

Drain Symbol

A drain-related warning can mean that the washer is having difficulty removing water.

Possible causes can include:

• A blocked drain filter
• A restricted drain hose
• A drainage obstruction
• A pump-related problem

If the washer contains water, use caution when checking drainage components and follow the manufacturer’s instructions.

Door Symbol

A door-related warning can indicate that:

• The door is not fully closed.
• Clothing is caught in the door seal.
• The door cannot lock correctly.
• The machine is still in a stage where the door must remain locked.

Do not force the door.

Service or Wrench Symbol

A wrench or service icon can indicate that the appliance has detected a fault.

The correct response depends on the model and any error code displayed with the symbol.

If the warning remains after the recommended basic checks, use the model-specific troubleshooting information or contact an authorized service provider.

Whirlpool Washer Symbols by Laundry Type

The best symbol is not necessarily the one with the most features. Choose a program based on the fabric, care label, soil level, and size of the load.

Everyday Clothes

For ordinary everyday garments, a normal, cotton, or mixed-fabric program may be appropriate.

Choose the temperature and spin settings according to the clothing labels.

Towels and Bedding

Cotton towels and many cotton sheets can often be washed using a suitable cotton or bedding program.

Avoid overloading the drum, particularly with bulky items.

Delicates

Use a delicate or gentle cycle when the garment’s care label permits machine washing.

Lower temperatures and gentler spin settings may be appropriate for some delicate items.

Wool

Use the wool cycle when available and when the garment is labeled as machine washable.

Do not assume that every wool item can safely go into a washing machine.

Lightly Soiled Clothes

A quick-wash program may be appropriate for lightly soiled clothes and smaller loads.

It is not necessarily the best option for heavily stained laundry.

Heavily Soiled Clothes

Depending on the fabric and care instructions, a longer program, prewash, stain-treatment option, or other suitable setting may be more appropriate.

What Should I Do When a Whirlpool Washer Symbol Appears?

A symbol by itself does not always indicate a problem.

First determine what type of symbol you are seeing.

If It Is a Cycle Symbol

The washer is probably showing the selected washing program.

Choose the cycle that matches your laundry.

If It Is an Option Symbol

The icon may indicate an additional feature such as extra rinse, delay start, steam, or extra spin.

Decide whether the option is appropriate for the load.

If It Is a Status Symbol

A lock, timer, temperature, or spin indicator may simply be telling you what the washer is currently doing.

If It Is a Warning Symbol

Check whether the icon is accompanied by:

• A flashing light
• An error code
• An unusual sound
• A failure to start
• Water remaining in the drum
• A door that will not unlock

If so, consult the troubleshooting instructions for your exact model.

How to Identify Your Exact Whirlpool Washer Symbol

Because Whirlpool uses different control panels, identifying your model can provide a much more accurate answer.

Find the Model Number

Look for the model information on the appliance label.

Depending on the washer, the label may be located:

• Inside the door area
• Around the door opening
• On the back
• On the side
• Near another appliance information label

The exact location varies.

Compare the Control Panel

Once you know the model number, compare your control panel with the model documentation.

This is particularly useful when two symbols look similar but perform different functions.

Check the Owner’s Manual

The owner’s manual is the best source for:

• Exact symbol meanings
• Available cycles
• Option functions
• Error codes
• Lock procedures
• Detergent instructions
• Maintenance procedures

A general symbol guide can help you recognize an icon, but the model-specific manual should take priority.

Whirlpool Washer Symbols vs. Cycle Settings

It is easy to confuse a symbol with a complete washing program.

A simple way to understand the difference is:

Type	What It Tells You	Example
Cycle	Main washing program	Cotton
Option	Extra feature	Extra Rinse
Setting	Adjustable washing condition	Temperature
Status	What the machine is doing	Door Locked
Warning	Something needs attention	Water Tap
Drawer marking	Where products go	II for main detergent

Understanding these categories makes the control panel much easier to use.

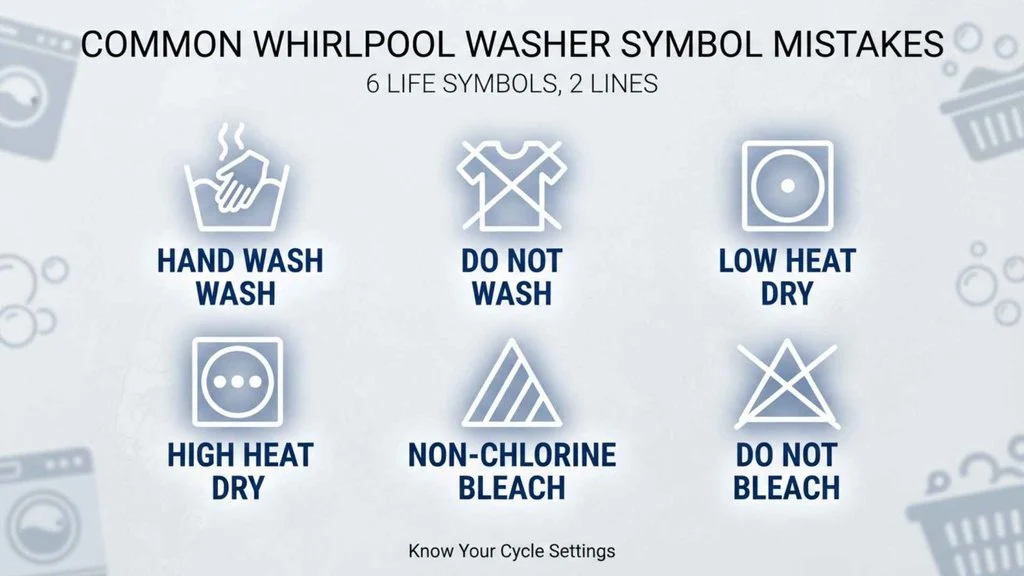

Common Whirlpool Washer Symbol Mistakes

Choosing a Cycle Based Only on the Icon

A symbol can give you a general idea, but always consider the fabric and care label.

Using the Wrong Detergent Compartment

Do not assume every compartment is for ordinary detergent. The I, II, and flower markings generally have different purposes.

Ignoring a Warning Symbol

A warning indicator should not automatically be dismissed as a normal cycle light.

Check the display and manual if the washer is not operating normally.

Forcing a Locked Door

A lock symbol generally exists for a reason. Never force the door open while it is locked.

Assuming Another Whirlpool Model Uses the Same Symbols

Different Whirlpool washers can have different icons and controls.

Always verify unfamiliar symbols against the manual for your model.

Whirlpool Washer Symbols Quick Reference

Here is a condensed reference for some of the most commonly encountered symbols and functions.

Symbol	Meaning	Category
🌀	Spin	Setting / cycle
💧	Water / rinse	Cycle / option
🔒	Door lock	Status
🔑	Control lock	Status / safety
⏱	Delay or time	Option / status
🌡	Temperature	Setting
🌿	Eco	Option / cycle
🚰	Water supply	Warning
🛁	Drain	Warning
🔧	Service / fault	Warning
I	Prewash detergent	Drawer
II	Main-wash detergent	Drawer
🌸	Fabric softener	Drawer
▶	Start	Control
⏸	Pause	Control

The actual printed icon should always be checked against your Whirlpool model documentation.

Frequently Asked Questions

What do the symbols on a Whirlpool washing machine mean?

Whirlpool washer symbols identify wash cycles, options, settings, status conditions, detergent compartments, and warnings. Their exact appearance and function vary by model.

What does the flower symbol mean on a Whirlpool washer?

The flower-shaped symbol commonly identifies the fabric-softener compartment in the detergent drawer.

What does II mean on a Whirlpool washing machine?

The II or 2 marking generally identifies the main-wash detergent compartment.

What does I mean on a Whirlpool washer?

The I or 1 marking generally identifies the prewash detergent compartment when a prewash is used.

What does the spiral symbol mean on a Whirlpool washing machine?

A spiral or swirl symbol generally represents the spin function or spin speed.

What does the lock symbol mean on a Whirlpool washer?

A lock symbol generally indicates that the washer door is locked. A similar key or lock indicator can also refer to a control-lock function on some models.

What does the key symbol mean on a Whirlpool washing machine?

A key symbol can indicate that the controls are locked, often through a child-lock or control-lock feature. The method for turning it off depends on the model.

What does the tap symbol mean on a Whirlpool washer?

A water-tap symbol can indicate a problem with the washer’s water supply. Check the water connection, inlet hose, and model-specific troubleshooting instructions.

What does the drain symbol mean on a Whirlpool washing machine?

A drain-related warning can indicate that the washer is having difficulty removing water. A blocked filter, restricted hose, or drainage problem may be involved.

What does the wrench symbol mean on a Whirlpool washer?

A wrench or service symbol can indicate that the machine has detected a fault or requires attention. The exact meaning depends on the model and any accompanying error code.

What does the clock symbol mean on a Whirlpool washer?

A clock symbol can represent delay start, remaining cycle time, or another time-related function. Its exact meaning depends on the model and display location.

What does the eco symbol mean on a Whirlpool washing machine?

An eco symbol generally indicates an energy- or resource-saving program or option. The actual water, temperature, and timing settings vary by model.

What does the steam symbol mean on a Whirlpool washer?

On models equipped with steam technology, the steam symbol generally identifies a steam-related function. The purpose can vary between Whirlpool models.

Which symbol is for fabric softener?

A flower symbol commonly marks the fabric-softener compartment. Check the maximum-fill marking and your washer’s manual before adding softener.

Which symbol is for detergent?

On many Whirlpool detergent drawers, II or 2 identifies the main-wash detergent compartment, while I or 1 is generally for prewash detergent.

Why is my Whirlpool washer showing a symbol but not starting?

First determine whether the symbol is a normal status indicator, a control-lock indicator, or a warning. Check that the door is properly closed, the controls are not locked, and there is no error code. If the washer still does not start, consult the manual for the exact model.

Why is the Whirlpool washer door locked?

The door may remain locked while the washer is running, while water is present, or until a safety condition has been satisfied. Wait for the lock to release naturally and do not force the door.

Why is the lock symbol flashing on my Whirlpool washer?

A flashing lock symbol can have different meanings depending on the model. It may relate to the door-lock mechanism or a control-lock function. Check the model-specific instructions if it does not clear normally.

Are Whirlpool washer symbols the same on every model?

No. Whirlpool uses different symbols, programs, and control layouts across its product range. Model, country, product series, and appliance generation can all affect the symbols.

How can I find the meaning of a symbol not listed here?

Find the washer’s model number and consult its owner’s manual. Comparing the exact control panel with the model documentation is more reliable than assuming that a similar-looking icon has the same function.

Can I use a general Whirlpool symbol guide instead of the manual?

A general guide is useful for recognizing common symbols, but the manual for your exact model should be considered the authoritative reference, especially for warning lights, error codes, safety functions, and unusual symbols.

Conclusion

Understanding Whirlpool washer symbols makes it easier to choose the right washing program, adjust settings, use the detergent drawer correctly, and recognize warnings before they become bigger problems.

The most common symbols relate to wash cycles, spin, rinse, temperature, delay start, eco options, door locks, child locks, detergent compartments, water supply, drainage, and service warnings. Symbols such as I, II, and the flower marking can also help you identify where prewash detergent, main detergent, and fabric softener generally belong.

However, Whirlpool washer symbols are not universal across every model. The same general feature may be represented differently, and some machines have functions that others do not. If an unfamiliar symbol appears on your washer, the best approach is to identify the model number and compare the control panel with the manufacturer’s documentation.
